FM ANTENNA SERIES

Mobile External FM Antenna

External reception support and audio connectivity for mobile FM radio applications.
Mobile external FM antenna product

PRODUCT OVERVIEW

FM reception without relying on a headset cable.

The external FM antenna supports mobile phones with built-in FM radio functionality. It can improve reception in locations with weak FM signals and supports connection to an external amplifier or speakers for indoor listening.

External FM antennaSupports FM radio reception without wearing a headset.
FM signal enhancerHelps improve reception where the available FM signal is weak.
Headset adapterProvides model-dependent 2.5 mm, 3.5 mm or Fast Port connectivity.
Audio outputSupports an external amplifier or speakers.

APPLICATION

Designed around mobile FM radio use.

The antenna system was developed as a cost-effective accessory for mobile phones with embedded FM radio. Its antenna-chip concept covers the common 87.5–108.0 MHz broadcast band and the 76–90 MHz Japanese FM band.

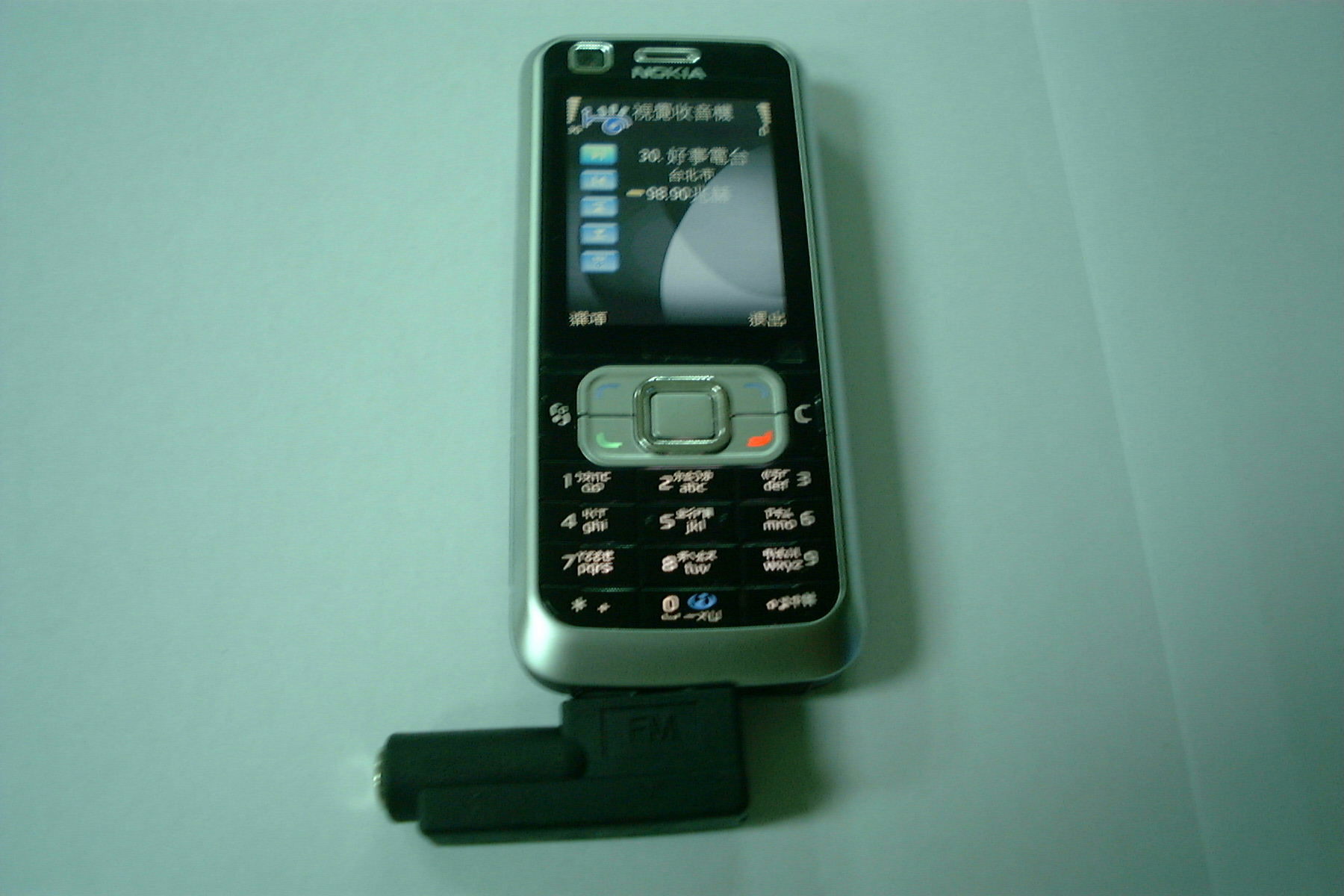

Mobile external FM antenna application
External antenna application
FM antenna accessory configuration
Accessory configuration

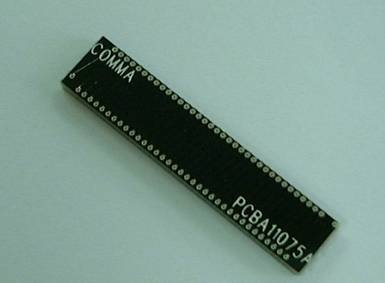

Comma PCBA11075A FM antenna chip
Internal antenna-chip component

AVAILABLE MODELS

Connector options

Select a part number to view its Product details page.

Part numberMobile phone brandHeadset interface
MPFMEA-FPSony EricssonFast Port
MPFMEA-25NNokia2.5 mm stereo
MPFMEA-35NNokia3.5 mm stereo
MPFMEA-25MMotorola2.5 mm stereo
MPFMEA-35MMotorola3.5 mm stereo

PDF specification

Download the Mobile External FM Antenna product document.
