| SPECIFICATION |
Title
|
Mobile Phone
External FM Antenna, for Nokia 2.5mm headset type |
| Part
No |
MPFMEA-25N |
Color
|
Iron grey |
|
Function
Four in One |
Mobile Phone External FM Antenna
|
For most peoples who hate listening music with headset, by this
product without headset the mobile phone FM radio still function
well. |
|
Mobile Phone
FM Signal Enhancer |
For most type of mobile phone already embedded FM radio function
inside, but the sound quality is not good enough at some place
which FM signal is poor, this product helps improving signal. |
Standard
3.5mm Headset Adapter
|
For standard 3.5Ø cellular phone headset, i.e. much cheaper,
replacing the much expensive proprietary mobile phone headset. |
Audio out
socket
|
Output to external amplifier
or speakers when stay indoors. |
|
COMPATIBILITY |
Outlet
|
Nokia 2.5mm
headset socket |
|
Audio Out |
Standard
2.5mm stereo audio out socket |
|
Compatibility |
for Nokia mobile phone all
2.5mm headset type with FM radio function |
|
Compatible Models for
Nokia Mobile Phones: (2.5mm) |
| |
|
1508 CDMA |
1650 |
1661 |
1662 |
2228 CDMA |
|
2300 |
2310 |
2323 classic |
2330 classic |
2600 classic |
|
2608 CDMA |
2630 |
2660 |
2680 slide |
2700 classic |
|
2720 fold |
2760 |
3110 classic |
3110 Evolve |
3120 classic |
|
3500 classic |
3600 slide |
3710 fold |
3720 classic |
5000 |
|
5030 |
5200 |
5230 |
5300 XpressMusic |
5610 XpressMusic |
|
5700 XpressMusic |
6030 |
6110 Navigator |
6120 classic |
6121 classic |
|
6124 |
6124 classic |
6210 Navigator |
6212 classic |
6216 classic |
|
6220 classic |
6267 |
6290 |
6300 |
6300i |
|
6301 |
6500 Slide |
6700 classic |
6730 classic |
6760 Slide |
|
7020 |
7100 Supernova |
7210 Supernova |
7310 Supernova |
7390 |
|
7500 Prism |
7510 Supernova |
7610 Supernova |
8600 Luna |
8800 |
|
8800 Sirocco |
E51 |
E66 |
E71 |
N-Gage |
|
|

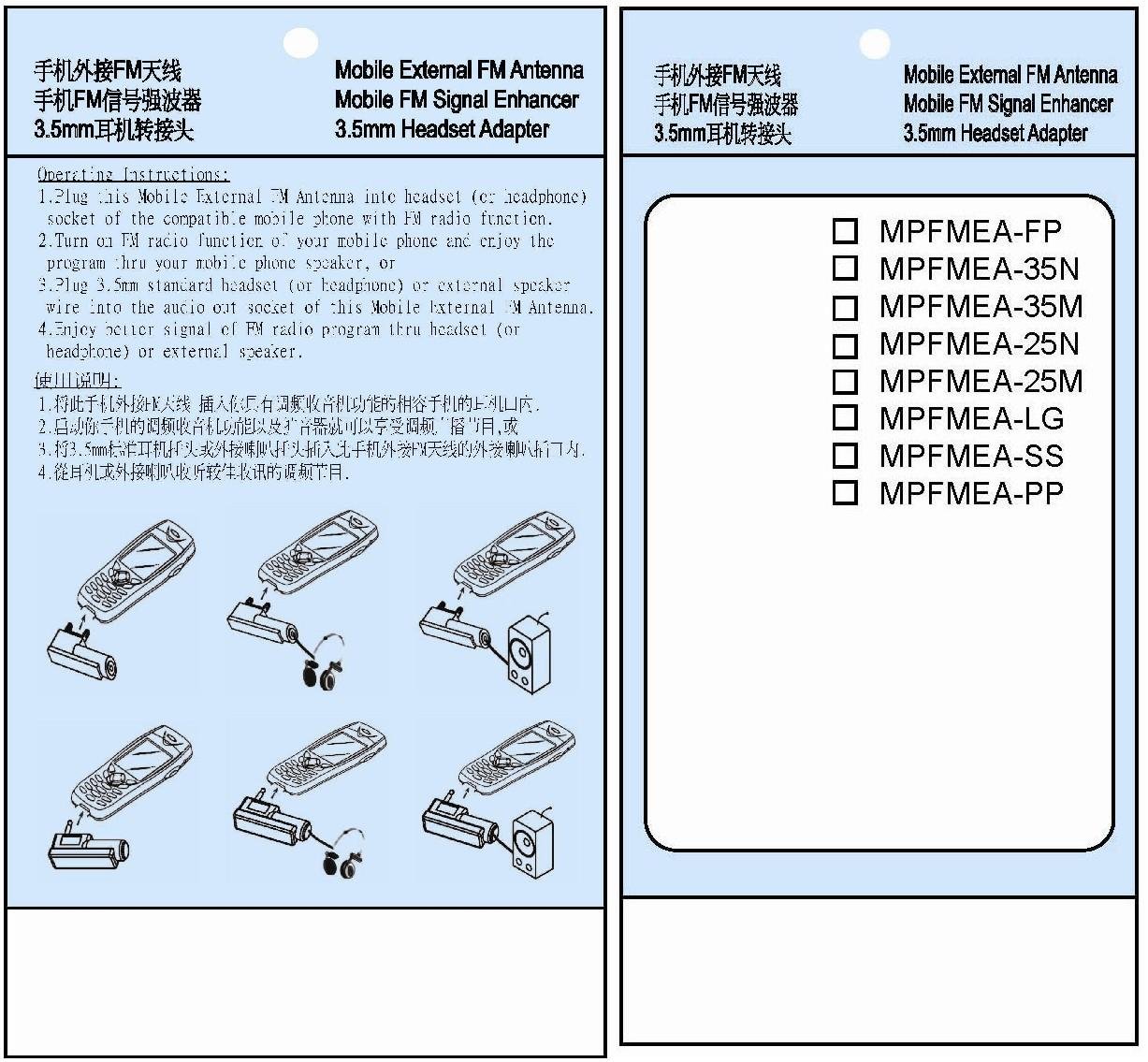

PACKAGE |
Background
Color
|
Blue |
Package
|
OPP bag
(as below) |
| |
|
Operating Instructions |
|
1. Plug this Mobile External FM Antenna into headset (or
headphone) socket of the compatible mobile phone
with FM radio function.
2. Turn on FM radio function of your mobile phone and enjoy
the program thru your mobile phone speaker, or
3. Plug 3.5mm standard headset (or headphone) or external
speaker wire into the audio out socket of this Mobile External
FM Antenna.
4. Enjoy better signal of FM radio program thru headset (or
headphone) or external speaker.
使用说明 :
1.将此手机外接FM天线插入你具有调频收音机功能的相容手机的耳机口内.
2.启动你手机的调频收音机功能以及扩音器就可以享受调频广播节目, 或
3.将3.5mm标准耳机插头或外接喇叭插头插入此手机外接FM天线的外接喇叭插口内.
4.從耳机或外接喇叭收听较佳收讯的调频节目. |
| |
