FM ANTENNA CHIP

PCBA11075A

Features

  • Miniature size: 24.2 mm (L) × 5.0 mm (W) × 1.6 mm (H)
  • Wide bandwidth from 76 to 108 MHz
  • Suitable for the Japan FM radio band
  • Omni-directional field pattern
  • Lightweight: 0.15 g
  • Linear polarization
  • Cost-effective design

Applications

  • Mobile phones
  • MP3 players
  • FM radios

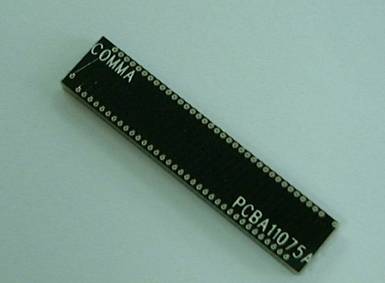

PCBA11075A FM antenna chip
PCBA11075A miniature FM antenna chip

TECHNICAL DATA

Specification

ItemData
Dimensions24.2 × 5.0 × 1.6 mm
FrequencyFM 76–108 MHz
PolarizationLinear
Field patternOmni-directional
Impedance50 Ω

MEASUREMENT

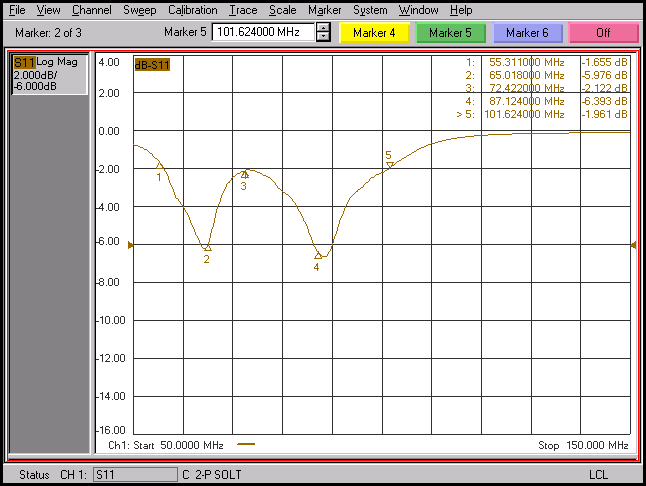

S11 return loss

Click the chart to open the original image.
PCBA11075A S11 return loss diagram

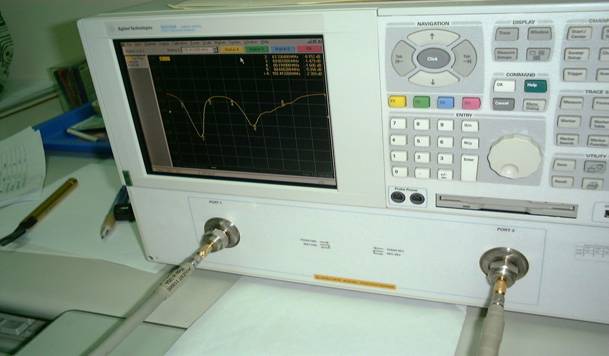

Network analyzer showing S11 measurement
Network analyzer measurement

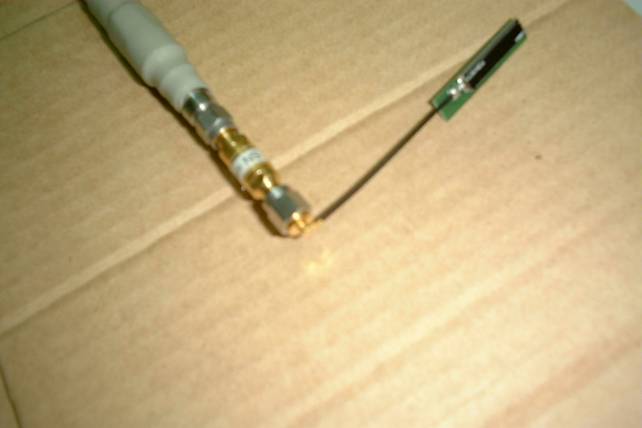

PCBA11075A antenna test setup
Antenna test setup
FrequencyS11
53.311 MHz-1.655 dB
65.019 MHz-5.976 dB
72.422 MHz-2.122 dB
87.124 MHz-6.393 dB
101.624 MHz-1.961 dB

PDF specification

Download the available FM antenna specification document.

Download PDF
