NO:FPS1.0-X1XX
SPECIFICATION
Title

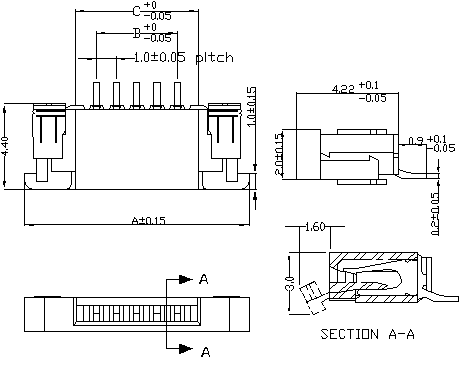

ZIF FPC 1.0mm SMT Connector, Horizontal OR Vertical, Upper OR Lower Contact Type
Part No
FPS1.0-X1XX
MATERIAL DATA
Insulation
High temperature thermoplastic UL94V-0
Contacts
Copper alloy
CONTACT PLATING DATA
Under plating
50u" min. Nickel-plated all over
Contact area
Tin-lead 90/10 100u” min.
Solder tails area
Tin-lead 90/10 100u” min.
PIN NUMBER DATA
Total numbers
3~60 Pin
ELECTRICAL DATA
Current rating
0.5Amps/Contact
Contact resistance
20mΩ MAX
Insulation resistance
50mΩ min
Dielectric with
250V AC
CATEGORY
P/N
FPS1.0-11XX
FPS1.0-21XX
FPS1.0-31XX
FPS1.0-41XX
Type
Extract / 抽屜Horizontal Up
Extract / 抽屜Horizontal Lo
Extract / 抽屜Vertical Upper
Extract / 抽屜Vertical Lower
Height
2.0mm
2.0mm
2.0mm
2.0mm
