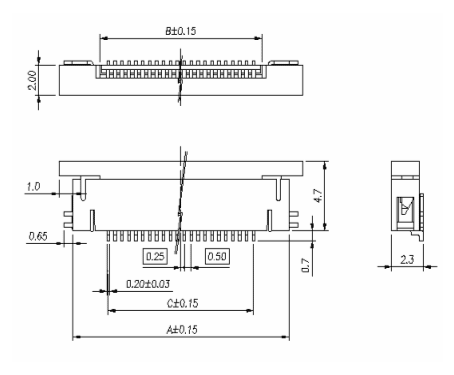

FPC connector, pitch 0.5mm, upper contact or lower contact, throw or extract type

NO:FPS0.5-X1XX

SPECIFICATION
Title	ZIF FPC 0.5mm SMT Connector Horizontal Upper Contact OR Lower Contact Type
Part No	FPS0.5-X1XX
MATERIAL DATA
Insulation	High temperature thermoplastic UL94V-0
Contacts	Copper alloy
CONTACT PLATING DATA
Underplate	50u" min. Nickel-plated all over
Contact area	Gold plated based on order information
Solder tails area	Tin-lead 90/10 100u” min.
PIN NUMBER DATA
Totle numbers	3~60 Pin
ELECTRICAL DATA
Current rating	0.5Amps/Contact
Contact resistance	20mΩ MAX
Insulation resistance	50mΩ min
Dielectric with	250V AC
