| SPECIFICATION |
Title
|
BATTERY
CONNECTOR |
| Part
No |

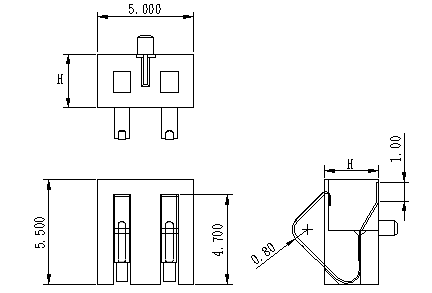

BCS2.5-X10X(H=3.0mm,or
H=2.8mm, or H=2.45mm) |
| MATERIAL
DATA |
Insulation
|
High temperature
thermoplastic UL94V-0 |
| Contacts
|
Copper
alloy |
| CONTACT
PLATING DATA |
Underplate
|
50u"
min. Nickel-plated all over |
Contact
area
|
Gold plated
based on order information |
| Solder
tails area |
Tin-lead
90/10 100u” min. |
PIN
NUMBER DATA |
| Total
numbers |
1~6
Pin |
| ELECTRICAL
DATA |
| Current
rating |
1.5 Amps/Contact |
Contact
resistance
|
30 mΩ
MAX |
Insulation
resistance
|
1000 MΩ
MIN |
| Dielectric
with |
250V AC |
| |
|
|
|
