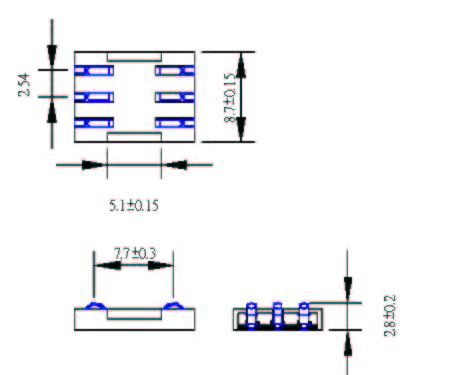

NO:SCS2.54-600X
@ @
SPECIFICATION
Title
SIM CARD CONNECTOR
Part No SCS2.54-600X
MATERIAL DATA
Insulation
High temperature thermoplastic UL94V-0
Contacts Copper alloy
CONTACT PLATING DATA
Underplate
50u" min. Nickel-plated all over
Contact area
Gold plated based on order information
Solder tails area Tin-lead 90/10 100u min.
PIN NUMBER DATA
Total numbers 2x3~2x6 Pin
ELECTRICAL DATA
Current rating 0.5 Amps/Contact
Contact resistance
40 M[
Insulation resistance
1000 M[
Dielectric with 250V AC

@
