NO:SCS2.54-2106
¡@ ¡@
SPECIFICATION
Title

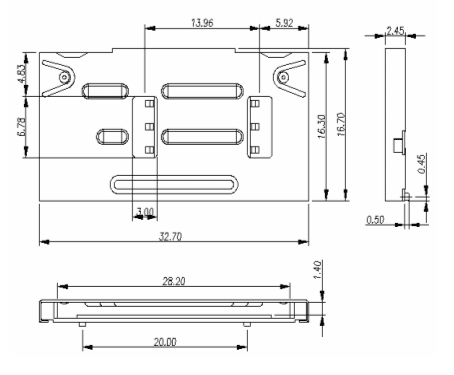

SIM CARD CONNECTOR
Part No SCS2.54-2106
MATERIAL DATA
Insulation
High temperature thermoplastic UL94V-0
Contacts Copper alloy
Shell C7521
CONTACT PLATING DATA
Underplate
50u" min. Nickel-plated all over
Contact area
Gold plated based on order information
Solder tails area Tin-lead 90/10 100u¡¨ min.
ELECTRICAL DATA
Current rating 0.5 Amps/Contact
Contact resistance
40 M£[
Insulation resistance
1000 M£[
Dielectric with 250V AC

¡@
