NO:PCS0.63-X1XX
@ @
SPECIFICATION
Title
PCMCIA

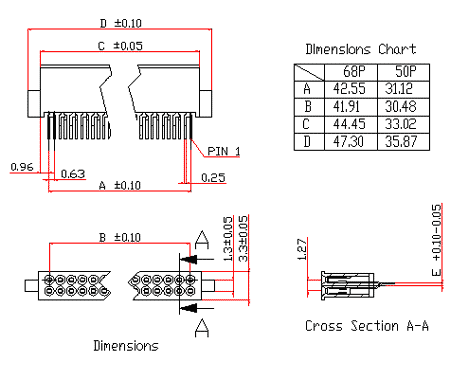

Part No PCS0.63-X1XX
MATERIAL DATA
Insulation
High temperature thermoplastic UL94V-0
Contacts Copper alloy
CONTACT PLATING DATA
Under plating
50u" min. Nickel-plated all over
Contact area
Gold plated based on order information
Solder tails area Tin-lead 90/10 200u min.
PIN NUMBER DATA
Total numbers 50 Pin & 68 Pin
ELECTRICAL DATA
Current rating 0.5 Amps/Contact
Contact resistance
40 m[ MAX
Insulation resistance
1000 M[ MIN
Dielectric with 500V AC

@
