NO:MPFMEA-35M

SPECIFICATION
Title

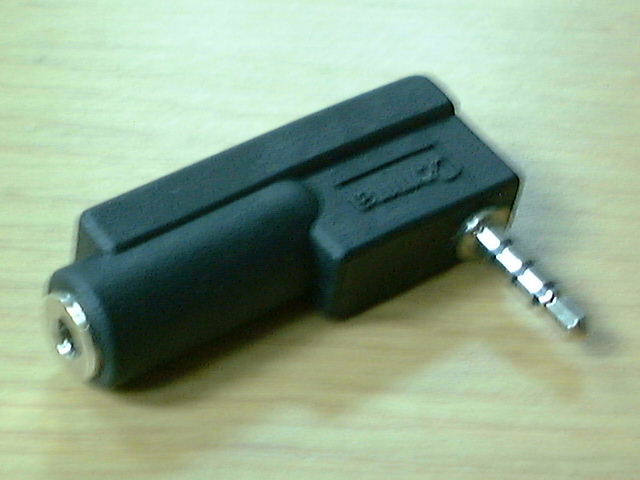

Mobile Phone External FM Antenna, for Motorola 3.5mm headset type
Part No MPFMEA-35M
Color
Iron grey
Function Four in One
Mobile Phone External FM Antenna
For most peoples who hate listening music with headset, by this product without headset the mobile phone FM radio still function well.
Mobile Phone FM Signal Enhancer For most type of mobile phone already embedded FM radio function inside, but the sound quality is not good enough at some place which FM signal is poor, this product helps improving signal.
Standard 3.5mm Headset Adapter
For standard 3.5Ø cellular phone headset, i.e. much cheaper, replacing the much expensive proprietary mobile phone headset.
Audio out socket
Output to external amplifier or speakers when stay indoors.
COMPATIBILITY
Outlet
Motorola 3.5mm headset socket
Audio Out Standard 3.5mm stereo audio out socket
Compatibility for Motorola mobile phone all 3.5mm headset type with FM radio function
Compatible Models for Motorola Mobile Phones: (3.5mm)

A1200e A1210 A1600 A3300c A810
CLIQ E8 EM325 EM330 EM35
ROKR E2 ROKR E6 ROKR E8 ROKR EM30 W362
ZINE ZN5 ZN300

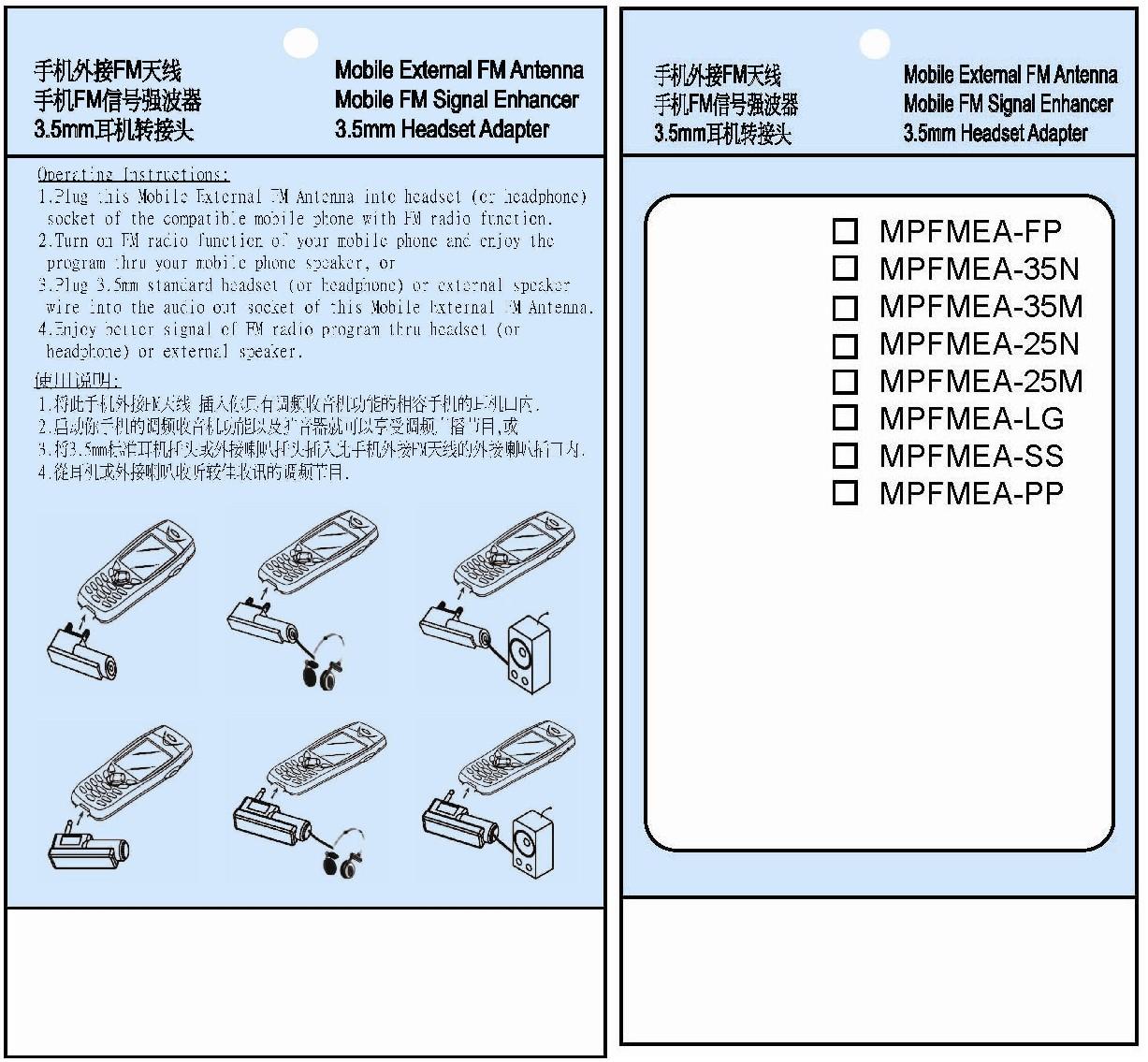

PACKAGE
Background Color
Blue
Package
OPP bag  (as below)
Operating Instructions
1. Plug this Mobile External FM Antenna into headset (or headphone) socket of the compatible mobile phone     with FM radio function.
2. Turn on FM radio function of your mobile phone and enjoy the program thru your mobile phone speaker, or
3. Plug 3.5mm standard headset (or headphone) or external speaker wire into the audio out socket of this Mobile     External FM Antenna.
4. Enjoy better signal of FM radio program thru headset (or headphone) or external speaker.

使用说明 :
1.将此手机外接FM天线插入你具有调频收音机功能的相容手机的耳机口内.
2.启动你手机的调频收音机功能以及扩音器就可以享受调频广播节目, 或
3.将3.5mm标准耳机插头或外接喇叭插头插入此手机外接FM天线的外接喇叭插口内.
4.從耳机或外接喇叭收听较佳收讯的调频节目.
