No:CFS1.27-X150
¡@ ¡@
SPECIFICATION
Title
CF CARD CONNECTOR
Part No CFS1.27-X150
MATERIAL DATA
Insulation
High temperature thermoplastic UL94V-0
Contacts Copper alloy
CONTACT PLATING DATA
Under plating
50u" min. Nickel-plated all over
Contact area
Gold plated based on order information
Solder tails area Tin-lead 90/10 100u¡¨ min.
PIN NUMBER DATA
Total numbers 50 Pin
ELECTRICAL DATA
Current rating 0.5 Amps/Contact
Contact resistance
40 m£[ MAX
Insulation resistance
1000 M£[
Dielectric with 500V AC
P/N CFS1.27-0120 60136120
Type TYPE I A TYPE I ARS
Stand Off 1.64mm 1.64mm
L*W*H 47.6*26.5*6.8mm 47.6*26.5*6.8mm
Post Pitch 41.40mm 41.40mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N CFS1.27-2020 60104020
Type TYPE I B TYPE I BR
Stand Off 0mm 0mm
L*W*H 46.8*26.0*4.0mm 46.8*26.0*4.0mm
Post Pitch 38.74mm 38.74mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N 60132020 60131020
Type TYPE I BO TYPE I BOR
Stand Off 0mm 0mm
L*W*H 46.8*26.0*4.0mm 46.8*26.0*4.0mm
Post Pitch 40.16mm 40.16mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N 60105020 60106020
Type TYPE I C TYPE I CR
Stand Off 0mm 0mm
L*W*H 46.8*20.5*4.0mm 46.8*20.5*4.0mm
Post Pitch 38.74mm 38.74mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N 60107020 60108020
Type TYPE I D TYPE I DR
Stand Off 0mm 0mm
L*W*H 46.8*19.0*4.0mm 46.8*19.0*4.0mm
Post Pitch 38.74mm 38.74mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N CFS1.27-D020
Type TYPE I F
Stand Off 0mm
L*W*H 46.8*13.7*4.0mm
Post Pitch 38.74mm
Spec. Top Mounting
PDF Download Download
P/N 60148320 60150320
Type TYPE I G TYPE I GR
Stand Off 1.7mm 1.7mm
L*W*H 47.8*26*5.4mm 47.8*26*5.4mm
Post Pitch 38.74mm 38.74mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N CFS1.27-E320 CFS1.27-F320
Type TYPE I GO TYPE I GOR
Stand Off 1.7mm 1.7mm
L*W*H 47.8*26*5.4mm 47.8*26*5.4mm
Post Pitch 40.16mm 40.16mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N 60147320 60149320
Type TYPE I GS TYPE I GRS
Stand Off 1.7mm 1.7mm
L*W*H 47.8*26*5.4mm 47.8*26*5.4mm
Post Pitch 38.74mm 38.74mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
P/N 60143320 60145320
Type TYPE I GOS TYPE I GORS
Stand Off 1.7mm 1.7mm
L*W*H 47.8*26*5.4mm 47.8*26*5.4mm
Post Pitch 40.16mm 40.16mm
Spec. Top Mounting Bottom Mounting
PDF Download Download

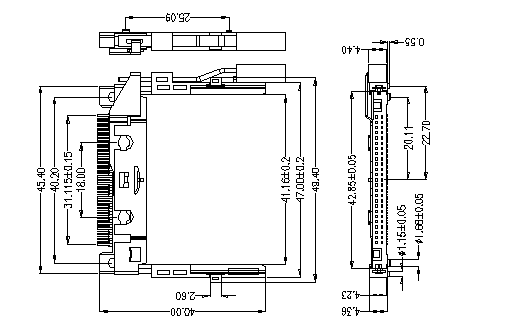

P/N CFS1.27-8020
Type TYPE II A
Stand Off 0mm
L*W*H 47.8*39.5*6.3mm
Post Pitch 40.16mm
Spec. Top Mounting
PDF Download Download
P/N CFS1.27-A220
Type TYPE II B
Stand Off 2.2mm
L*W*H 47.8*39.2*8.5mm
Post Pitch 40.16mm
Spec. Top Mounting
PDF Download Download
P/N CFS1.27-A020 CFS1.27-G020
Type TYPE II BO TYPE II BORS
Stand Off 0mm 0mm
L*W*H 47.8*39.2*6.3mm 47.8*39.2*6.3mm
Post Pitch 40.16mm 40.16mm
Spec. Top Mounting Bottom Mounting
PDF Download Download
Ejector Type Straight Right Button Straight Right Button
P/N CFE1.27-1111 CFE1.27-1121
ButtonLength 15.0mm Black 17.5mm Black
PDF Download Download
P/N CFE1.27-1131 CFE1.27-1141
ButtonLength 20.0mm Black 22.0mm Black
PDF Download Download
Ejector Type Straight Left Button Straight Left Button
P/N 60821011
ButtonLength 15.0mm Black
PDF Download Download
P/N CFE1.27-2131 CFE1.27-2141
ButtonLength 20.0mm Black 22.0mm Black
PDF Download Download
Ejector Type L Button Black
P/N CFE1.27-1201
Button Type Right Side
PDF Download
P/N CFE1.27-2201
Button Type Left Side
PDF Download
¡@
